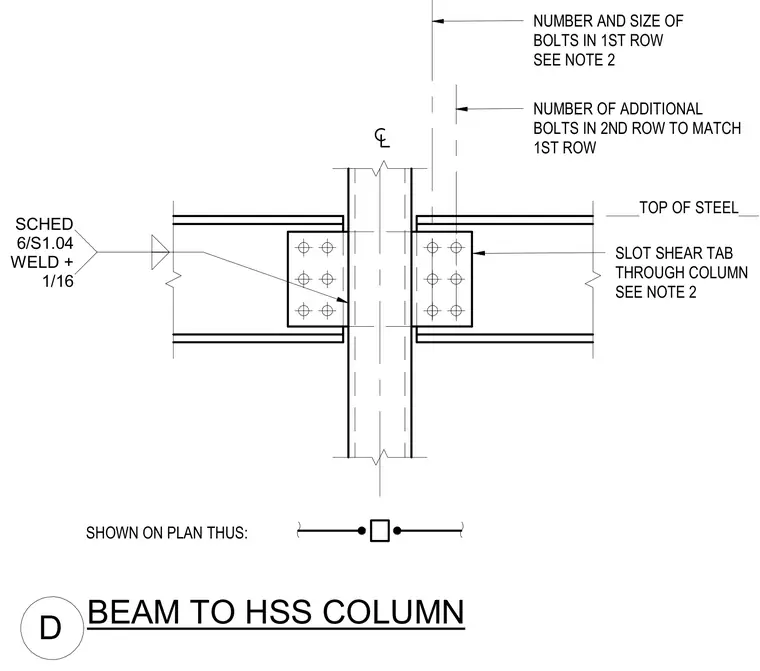

Steel beams frame into a hollow structural section column using a slot shear tab connection that passes through the column web. The structural steel beams are bolted to the single plate shear tab with a specified number and size of bolts in the first and second rows. The shear tab plate is welded to the hollow structural section column according to schedule and note requirements. Top of steel elevations are aligned with plan designations.
BEAM TO HSS COLUMN D SLOT SHEAR TAB THROUGH COLUMN SEE NOTE 2 TOP OF STEEL SHOWN ON PLAN THUS: SCHED 6/S1.04 WELD + 1/16 NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW TO MATCH 1ST ROW
