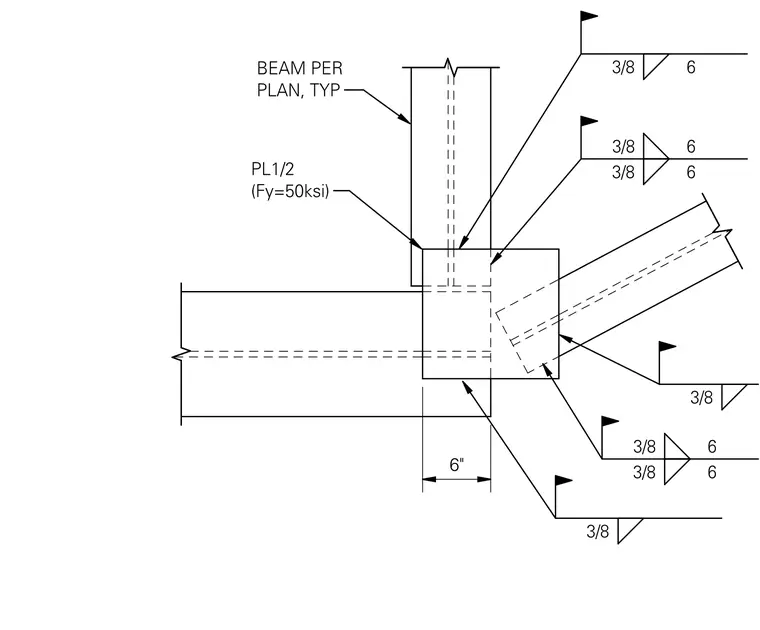

This structural steel connection features a half-inch thick steel plate with a yield strength of 50 ksi tying intersecting framing members together at an angled building corner. Structural steel beams sized per plan frame into the connection assembly. Three-eighths inch fillet welds connect the plates and members with specific longitudinal spacing.
