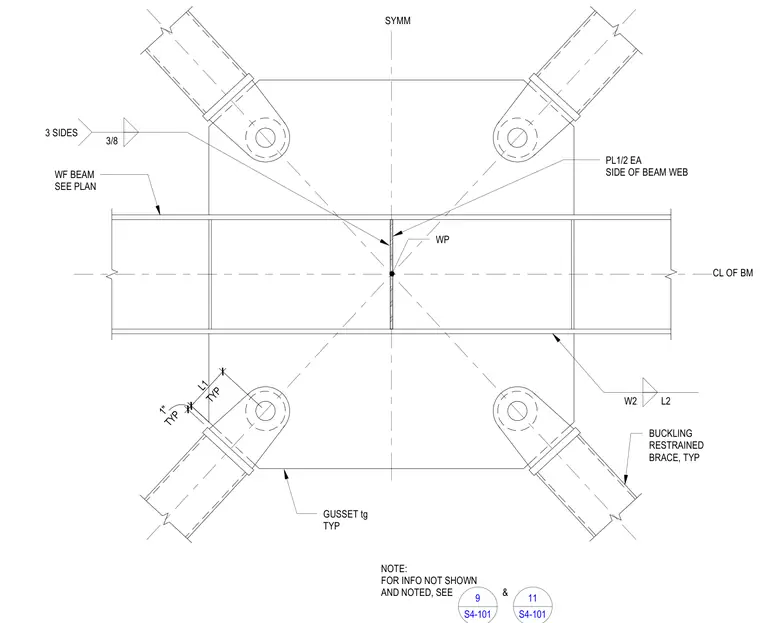

Four buckling restrained braces frame into a wide-flange beam web at midspan through a symmetrical gusset plate assembly. Half-inch plates are welded to each side of the beam web with fillet welds. The braces align with a common working point at the beam centerline.
WP TYP 1" TYP L1 GUSSET tg TYP BUCKLING RESTRAINED BRACE, TYP NOTE: FOR INFO NOT SHOWN AND NOTED, SEE & 9 S4-101 11 S4-101 CL OF BM WF BEAM SEE PLAN SYMM PL1/2 EA SIDE OF BEAM WEB W2 L2 3/8 3 SIDES
