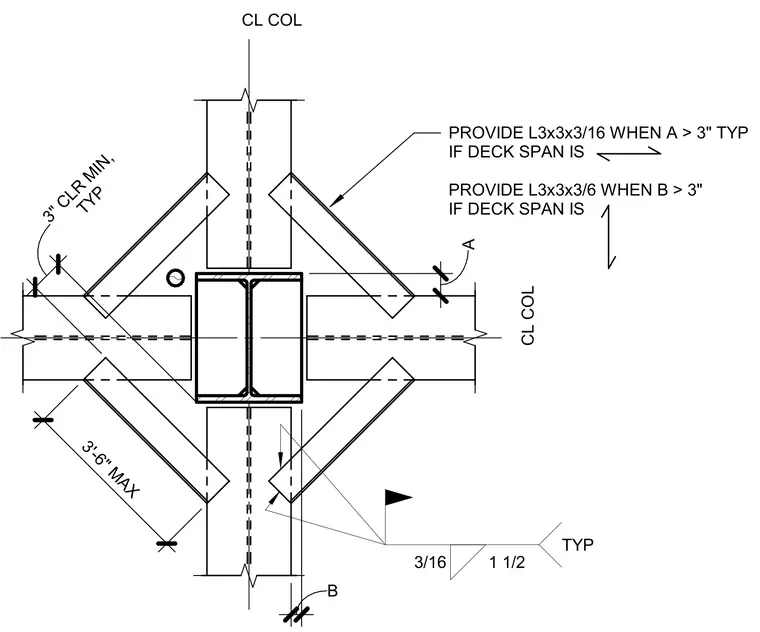

Metal deck support angles frame around a structural steel column centerline with a three-inch clearance minimum and three-foot-six-inch maximum. An angle size of L3x3x3/16 is provided typically when dimension A exceeds three inches based on the deck span. An angle size of L3x3x3/16 is provided typically when dimension B exceeds three inches based on the deck span. Fillet welds of three-sixteenth-inch size with a length of one and one-half inches are specified typically.
CL COL CL COL A PROVIDE L3x3x3/16 WHEN A > 3" TYP IF DECK SPAN IS PROVIDE L3x3x3/6 WHEN B > 3" IF DECK SPAN IS TYP 3" CLR MIN, 3'-6" MAX 3/16 1 1/2 TYP B
