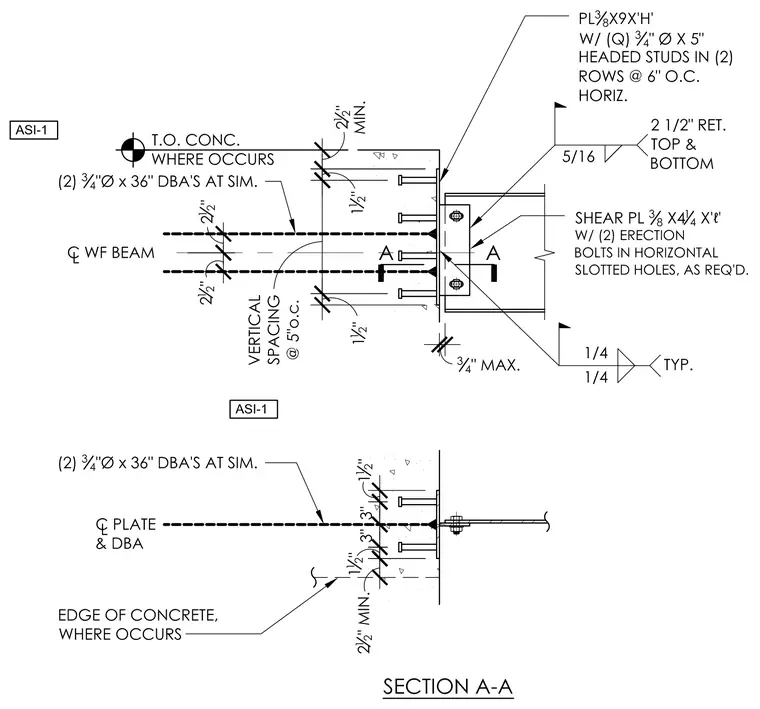

A wide-flange steel beam connects to a concrete wall using a three-eighths-inch by nine-inch plate embedded with three-quarters-inch diameter by five-inch headed studs in two rows spaced at six inches on center horizontally. A three-eighths-inch by four-and-a-quarter-inch shear plate welds to the embedded plate with five-sixteenths-inch welds at top and bottom. The beam web bolts to the shear plate using two erection bolts in horizontal slotted holes as required, with one-quarter-inch typical fillet welds. Two three-quarters-inch diameter by thirty-six-inch deformed bar anchors at similar conditions provide additional anchorage into the concrete wall with vertical spacing at five inches on center.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
