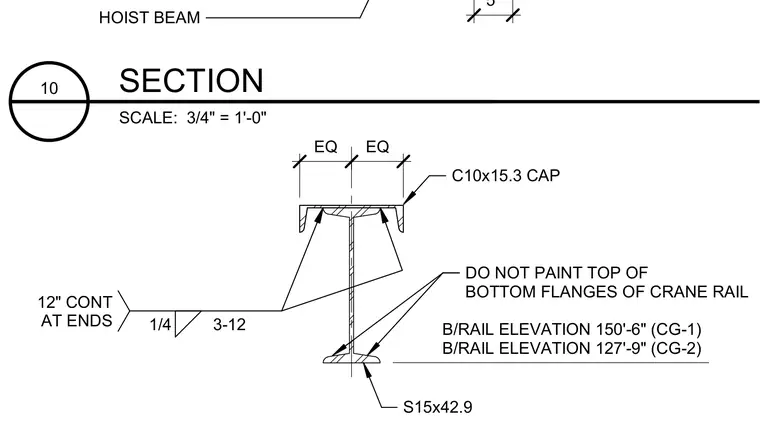

An S15x42.9 crane girder supports a C10x15.3 cap channel welded along the top flange with quarter-inch fillet welds spaced three inches on center and twelve inches continuous at the ends. The top of the bottom flanges of the crane rail remains unpainted. Rail elevations are specified at 150'-6" for CG-1 and 127'-9" for CG-2.
C10x15.3 CAP B/RAIL ELEVATION 150'-6" (CG-1) B/RAIL ELEVATION 127'-9" (CG-2) EQ EQ S15x42.9 1/4 3-12 12" CONT AT ENDS DO NOT PAINT TOP OF BOTTOM FLANGES OF CRANE RAIL 5" HOIST BEAM SCALE: 3/4" = 1'-0" 10 SECTION
