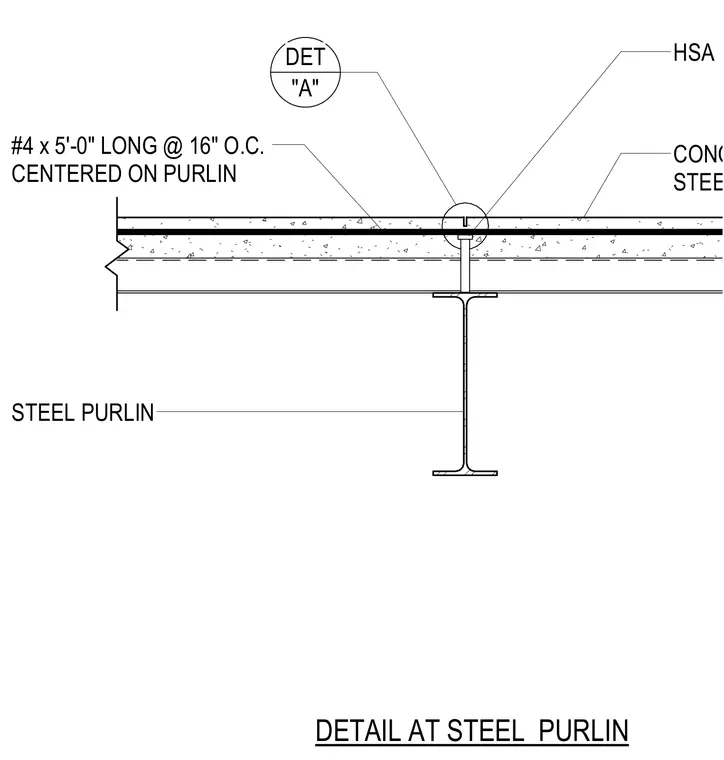

A concrete slab over a steel deck bears directly on a steel purlin section. Number four reinforcing bars are five feet long and spaced at sixteen inches on center, centered on the purlin.
STEEL PURLIN HSA #4 x 5'-0" LONG @ 16" O.C. CENTERED ON PURLIN CONCRETE OVER STEEL DECK DETAIL AT STEEL PURLIN "A" DET
