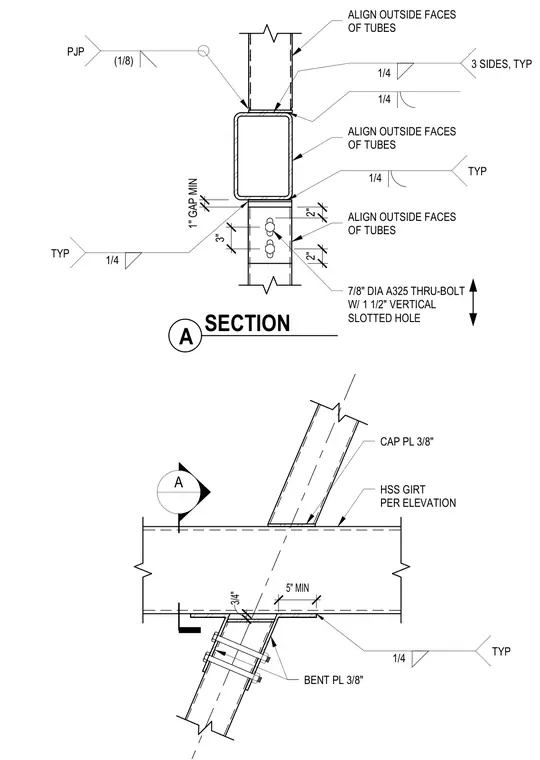

Hollow structural section glazing girts feature a 3/8-inch cap plate welded with a partial joint penetration weld and typical 1/4-inch fillet welds on three sides. A bent 3/8-inch plate connects to the girt utilizing 7/8-inch diameter A325 through-bolts in 1 1/2-inch vertical slotted holes to allow movement, maintaining a 1-inch minimum gap. The outside faces of the structural tubes are aligned throughout the assembly. All welds are specified as typical 1/4-inch fillets unless otherwise noted.
A CAP PL 3/8" 1/4 3 SIDES, TYP BENT PL 3/8" A SECTION 1" GAP MIN 2" 7/8" DIA A325 THRU-BOLT W/ 1 1/2" VERTICAL SLOTTED HOLE (1/8) PJP ALIGN OUTSIDE FACES OF TUBES HSS GIRT PER ELEVATION 1/4 TYP 1/4 TYP 1/4 ALIGN OUTSIDE FACES OF TUBES ALIGN OUTSIDE FACES OF TUBES 1/4 TYP 3" 2" 5" MIN 3/4"
