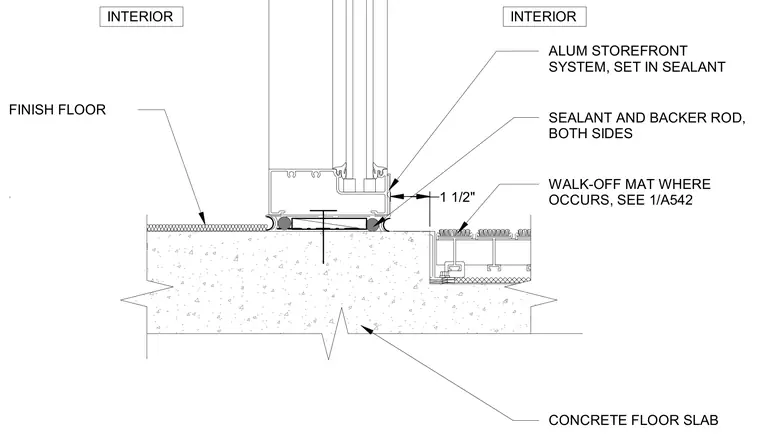

An aluminum storefront system sits directly on a concrete floor slab and is set in sealant. The sill is detailed with sealant and backer rod on both sides. A finish floor abuts the storefront assembly. Where required, a walk-off mat is recessed into the concrete slab as detailed on adjacent sheets.
ALUM STOREFRONT SYSTEM, SET IN SEALANT FINISH FLOOR CONCRETE FLOOR SLAB WALK-OFF MAT WHERE OCCURS, SEE 1/A542 SEALANT AND BACKER ROD, BOTH SIDES 1 1/2" INTERIOR INTERIOR
