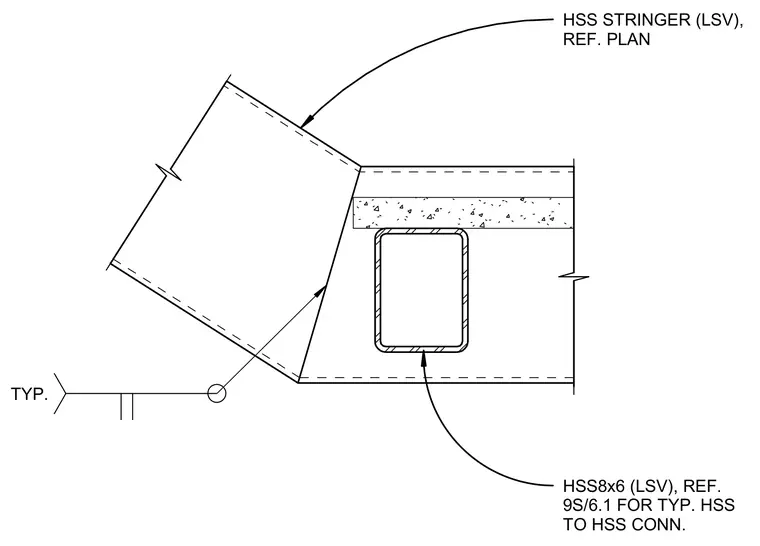

An HSS8x6 hollow structural section connects to the stair stringer at a directional change in the stair framing. The connection is detailed with reference to sheet 9S/6.1 for typical hollow structural section to hollow structural section connections. An HSS stringer is routed as sized per plan.
HSS8x6 (LSV), REF. 9S/6.1 FOR TYP. HSS TO HSS CONN. HSS STRINGER (LSV), REF. PLAN TYP.
