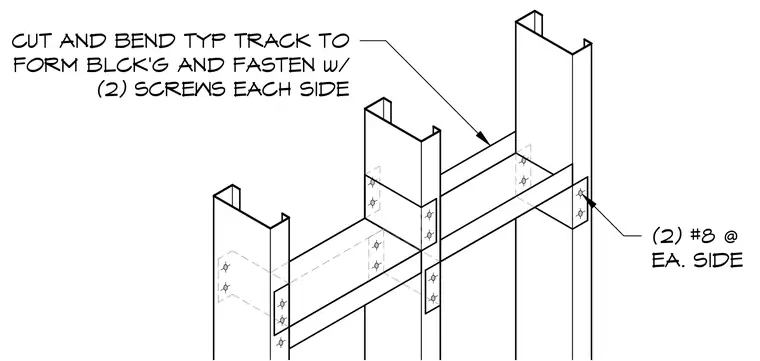

Cold-formed metal track is cut and bent to form blocking between vertical metal studs. The blocking is secured using two number eight screws on each side.
(2) #8 @ EA. SIDE CUT AND BEND TYP TRACK TO FORM BLCK'G AND FASTEN w/ (2) SCREWS EACH SIDE
