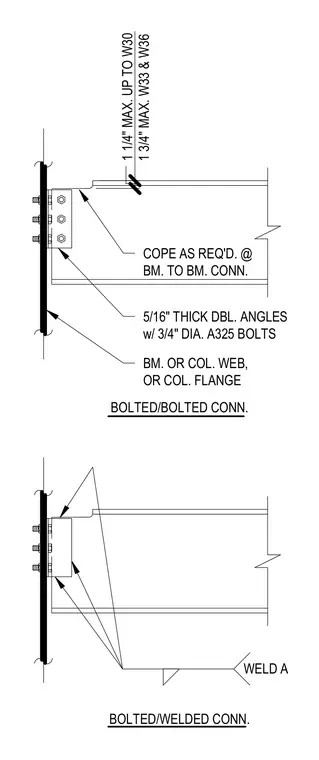

A steel beam connects to a supporting beam or column web or flange using five-sixteenth-inch thick double angles secured with three-quarter-inch diameter A325 bolts. The supported beam is coped as required at beam-to-beam connections, with a maximum clearance of one and one-quarter inches for beams up to W30 and one and three-quarter inches for W33 and W36 shapes. Connections are detailed in both bolted-bolted and bolted-welded configurations with designated weld specifications.
1 3/4" MAX. W33 & W36 COPE AS REQ'D. @ BM. TO BM. CONN. 5/16" THICK DBL. ANGLES w/ 3/4" DIA. A325 BOLTS BM. OR COL. WEB, OR COL. FLANGE 1 1/4" MAX. UP TO W30 BOLTED/BOLTED CONN. BOLTED/WELDED CONN. WELD A
