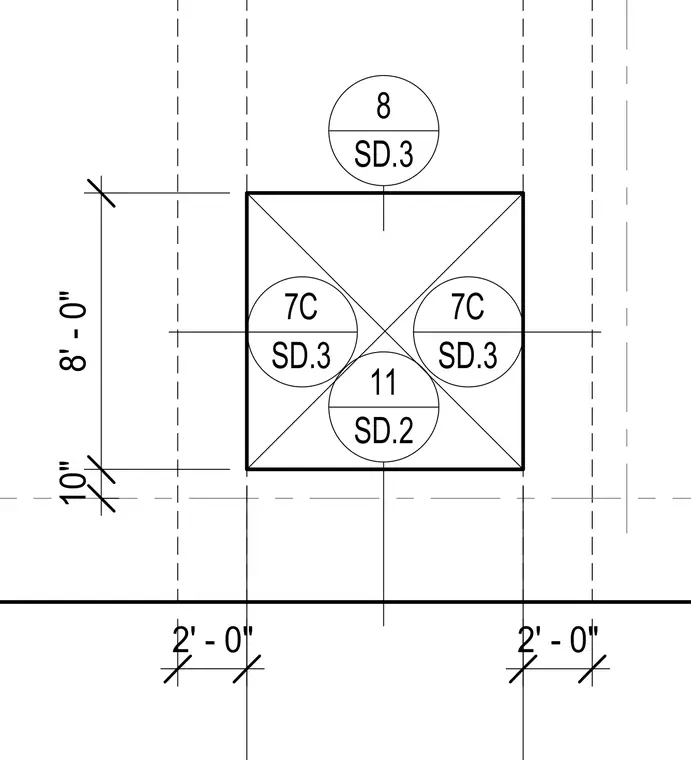

A structural plan detail displays grid lines and dimensioned clearances for an opening layout with reference bubbles. Dimensions of eight feet zero inches and ten inches establish spatial positioning relative to grid intersections. Detail reference bubbles point to sheets SD.2 and SD.3 for related construction information.
