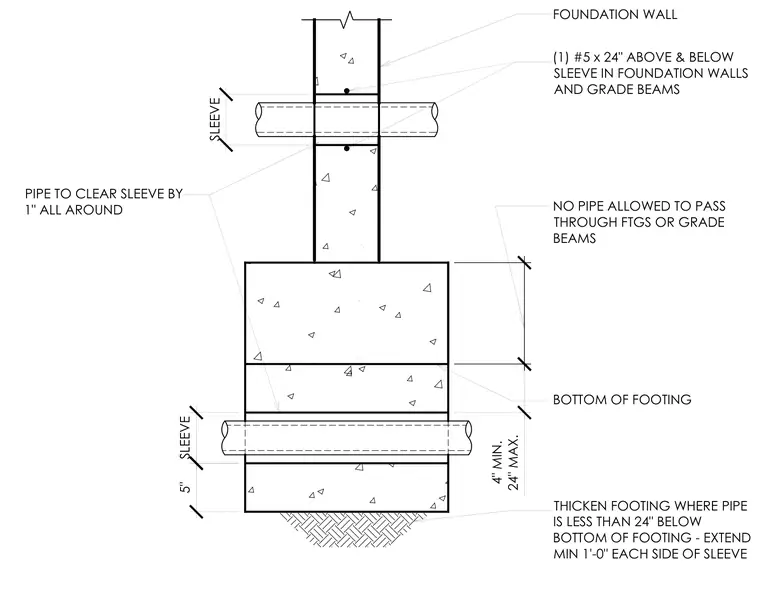

A pipe penetrates the concrete foundation wall and grade beam centered inside a five-inch sleeve, maintaining a one-inch clearance all around. One number five by twenty-four-inch reinforcing bar is placed above and below the sleeve within the foundation wall and grade beam. Pipes are prohibited from passing through footings or grade beams directly. Footings are thickened where the pipe is less than twenty-four inches below the bottom of the footing, extending a minimum of one foot on each side of the sleeve.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE 5" SLEEVE 4" MIN. 24" MAX. SLEEVE
