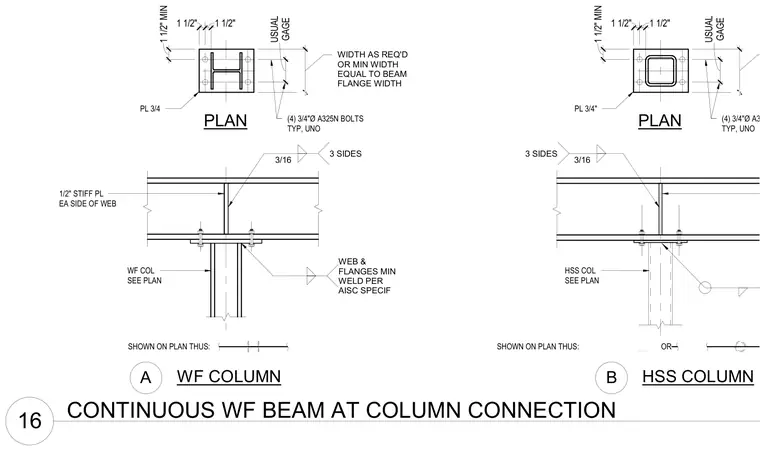

A continuous wide-flange beam connects to a supporting column using a three-quarter-inch base plate fastened with four three-quarter-inch-diameter A325N bolts typically unless noted otherwise. One-half-inch stiffener plates are welded to each side of the beam web using three-sixteenth-inch fillet welds on three sides. The web and flanges receive minimum welds per American Institute of Steel Construction specifications. The connection adapts to either a wide-flange column or a hollow structural section column sized per plan.
1/2" STIFF PL EA SIDE OF WEB WF COL SEE PLAN PLAN PL 3/4 (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 3/16 3 SIDES HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" 16 CONTINUOUS WF BEAM AT COLUMN CONNECTION
