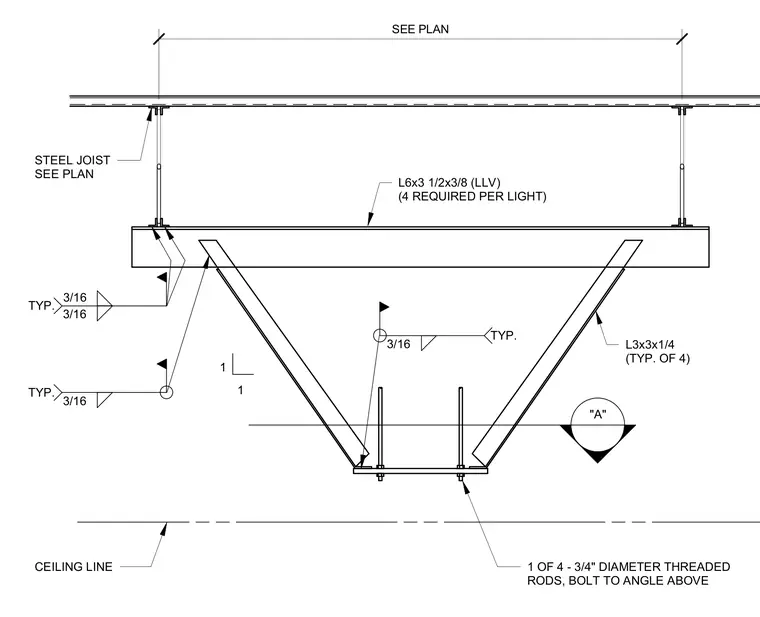

Suspended light fixture support frame hung from overhead steel joists sized per plan. The fixture frame consists of structural steel angles including L6x3 1/2x3/8 and L3x3x1/4 members welded with three-sixteenths inch fillet welds. Four three-quarter inch diameter threaded rods bolt the hanging assembly to angles located above the ceiling line. Typical three-sixteenths inch fillet welds secure the framing components together.
1 1 CEILING LINE SEE PLAN 1 OF 4 - 3/4" DIAMETER THREADED RODS, BOLT TO ANGLE ABOVE L3x3x1/4 (TYP. OF 4) 3/16 TYP. STEEL JOIST SEE PLAN 3/16 3/16 TYP. 3/16 TYP. L6x3 1/2x3/8 (LLV) (4 REQUIRED PER LIGHT) "A"
