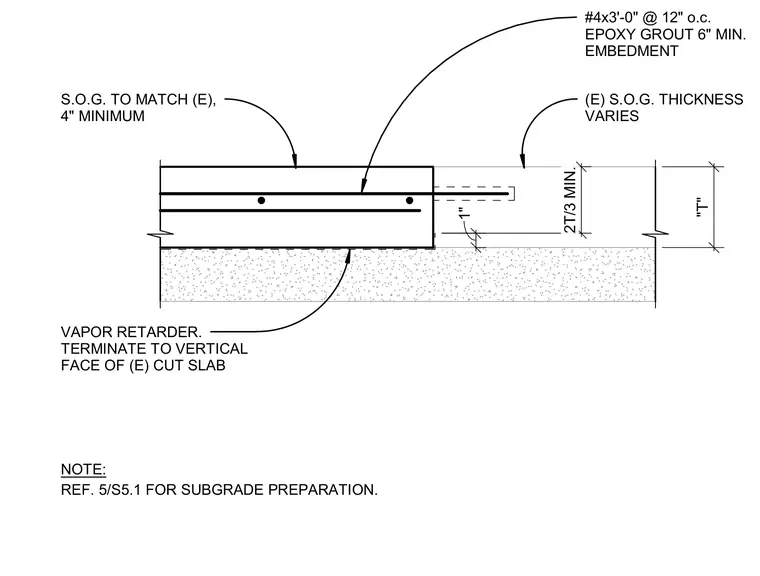

A new concrete slab-on-grade is doweled into the vertical face of an existing cut slab using number four epoxy-grouted reinforcing bars spaced at twelve inches on center with a six-inch minimum embedment. The new slab matches the existing slab thickness with a four-inch minimum and rests on a vapor retarder that terminates against the vertical face of the existing cut slab. Subgrade preparation must follow the referenced drawing.
(E) S.O.G. THICKNESS VARIES #4x3'-0" @ 12" o.c. EPOXY GROUT 6" MIN. EMBEDMENT S.O.G. TO MATCH (E), 4" MINIMUM VAPOR RETARDER. TERMINATE TO VERTICAL FACE OF (E) CUT SLAB REF. 5/S5.1 FOR SUBGRADE PREPARATION. NOTE: 1" "T" 2T/3 MIN.
