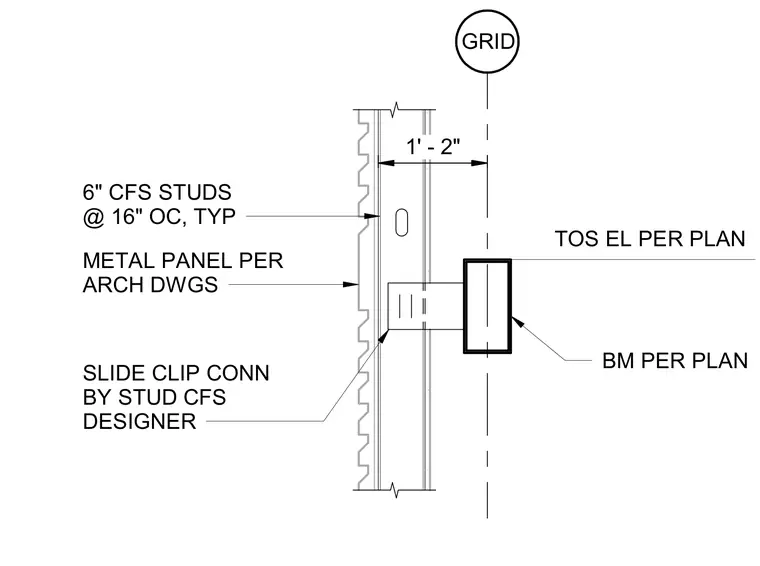

Six-inch cold-formed steel studs spaced at sixteen inches on center connect to a structural beam per plan using a slide clip connection designed by the cold-formed steel designer. Exterior metal panels are provided per architectural drawings. The structural beam aligns with a building grid line.
METAL PANEL PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP BM PER PLAN TOS EL PER PLAN 116' - 2 1/2" SLIDE CLIP CONN BY STUD CFS DESIGNER 1' - 2" GRID
