Typical Tilt-Up Concrete Wall Panel Reinforcing Placement

Materials

Elements

About this detail

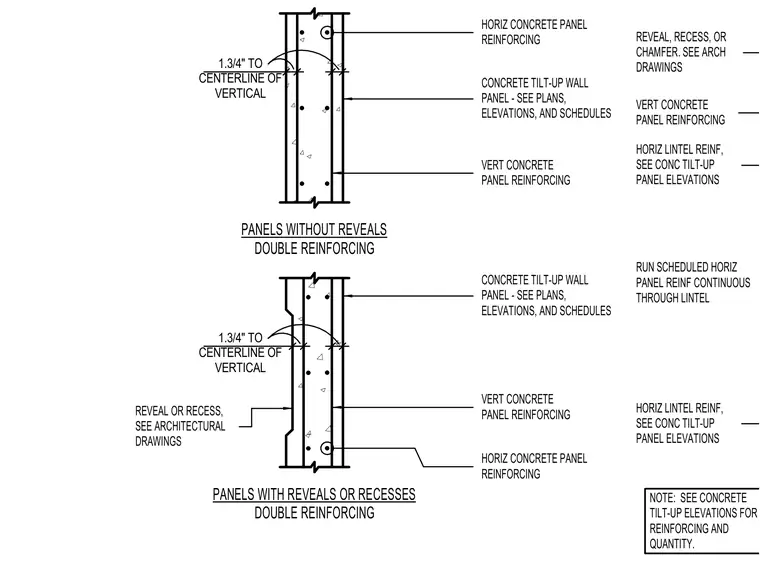

Tilt-up concrete wall panels feature double reinforcing with vertical and horizontal reinforcing steel placed 1-3/4 inches to the centerline of the vertical bars. Panels without reveals maintain a uniform thickness, while panels with reveals, recesses, or chamfers coordinate locations with architectural drawings. Horizontal lintel reinforcing runs continuously through lintels per concrete tilt-up panel elevations and schedules.
