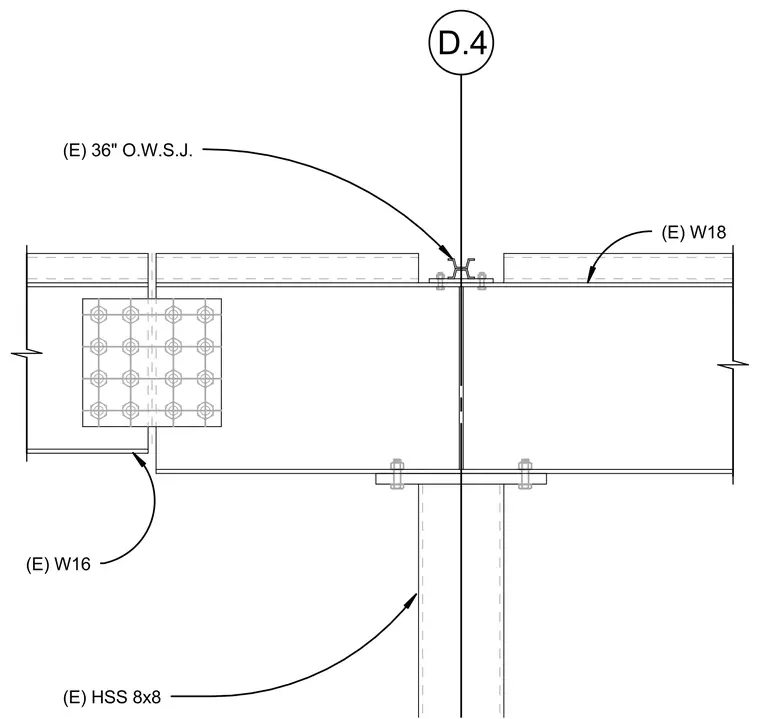

An existing W18 wide flange beam bears onto an existing HSS 8x8 hollow structural section column via a base plate assembly. An existing W16 wide flange beam connects to the primary framing through a bolted gusset or shear plate configuration with multiple rows of bolts. Above the framing, an existing thirty-six inch open web steel joist is anchored in alignment with the column centerline and detail marker D.4. All structural steel elements are designated as existing per the drawing callouts.
D.4 (E) W16 (E) HSS 8x8 (E) W18 (E) 36" O.W.S.J.
