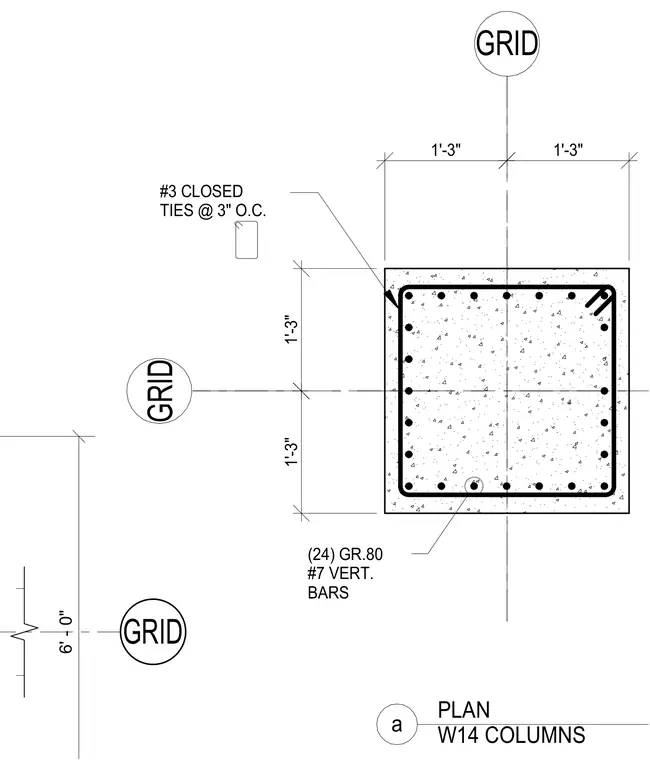

This structural detail shows a square reinforced concrete column centered at the intersection of grid lines. The column is reinforced with twenty-four grade 80 number 7 vertical reinforcing bars distributed symmetrically. Number 3 closed ties are spaced at 3 inches on center to provide confinement and shear reinforcement. Overall dimensions and edge clearances are explicitly referenced to the structural grid.
a PLAN W14 COLUMNS 1'-3" 1'-3" 1'-3" 1'-3" GRID GRID #3 CLOSED TIES @ 3" O.C. (24) GR.80 #7 VERT. BARS 6' - 0" GRID
