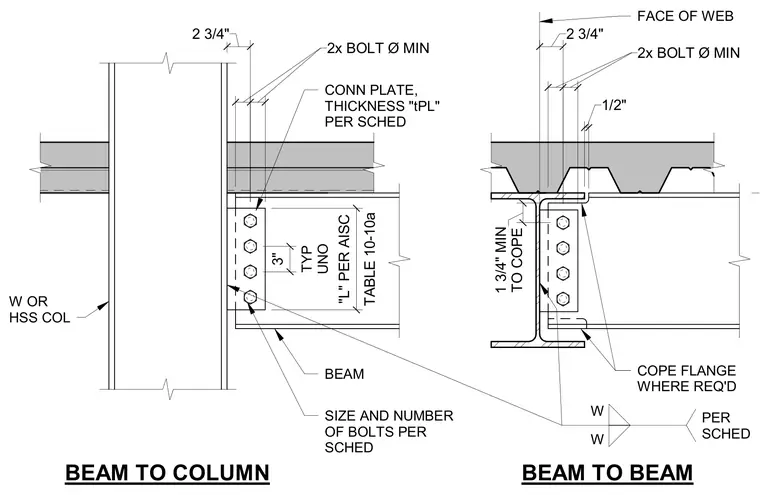

The steel beam connects to a wide-flange or hollow structural section column using a welded-bolted single-plate shear connection sized per schedule. The connection plate is fillet-welded to the column face and bolted to the beam web with diameter and quantity of bolts determined by schedule. The beam to beam framing condition incorporates a flange cope where required with minimum dimensions and edge clearances maintained from the face of the web. Bolt spacing and edge distances conform to AISC Table 10-10a standards with typical spacing noted.
TYP UNO W W PER SCHED FACE OF WEB 1/2" 2 3/4" 2x BOLT Ø MIN 2x BOLT Ø MIN TABLE 10-10a "L" PER AISC BEAM TO COLUMN BEAM TO BEAM SIZE AND NUMBER OF BOLTS PER SCHED W OR HSS COL COPE FLANGE WHERE REQ'D CONN PLATE, THICKNESS "tPL" PER SCHED BEAM 3" TO COPE 1 3/4" MIN 2 3/4"
