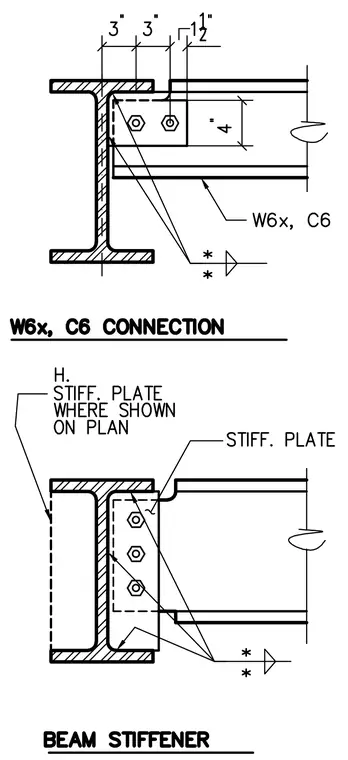

A W6x or C6 structural steel beam frames into the web of a wide-flange column utilizing a bolted connection with stiffener plates. Horizontal stiffener plates are welded to the column web and flanges as shown on plan to provide additional reinforcement. Fillet welds secure the connection assembly, with specific dimensions indicating bolt spacings and plate locations.
