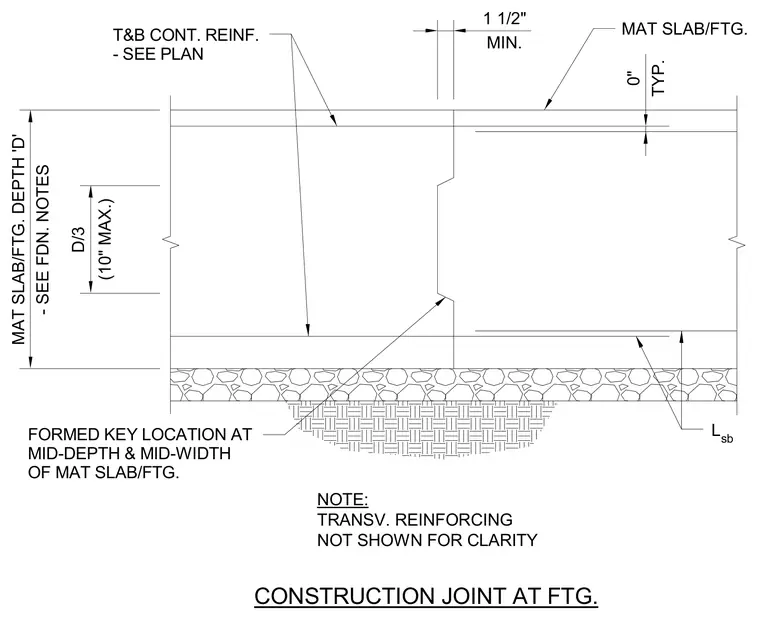

A construction joint in a concrete mat slab or footing incorporates a formed key located at the mid-depth and mid-width of the member. Continuous top and bottom reinforcing steel continues across the joint, sized and spaced per plan with specified lap splice lengths. Transverse reinforcing is omitted for clarity. A one-and-a-half-inch minimum gap is provided at the top surface, and the total mat depth is designed per foundation notes.
FORMED KEY LOCATION AT MID-DEPTH & MID-WIDTH OF MAT SLAB/FTG. T&B CONT. REINF. - SEE PLAN MAT SLAB/FTG. L sb NOTE: TRANSV. REINFORCING NOT SHOWN FOR CLARITY CONSTRUCTION JOINT AT FTG. MAT SLAB/FTG. DEPTH 'D' - SEE FDN. NOTES D/3 (10" MAX.) 1 1/2" MIN. 0" TYP.
