Structural · S-WW234

Concrete Curb Reinforcement and Dowel Details

Materials

Concrete Reinforced Concrete Metal (misc.)

Elements

Floors / Slabs Decks Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

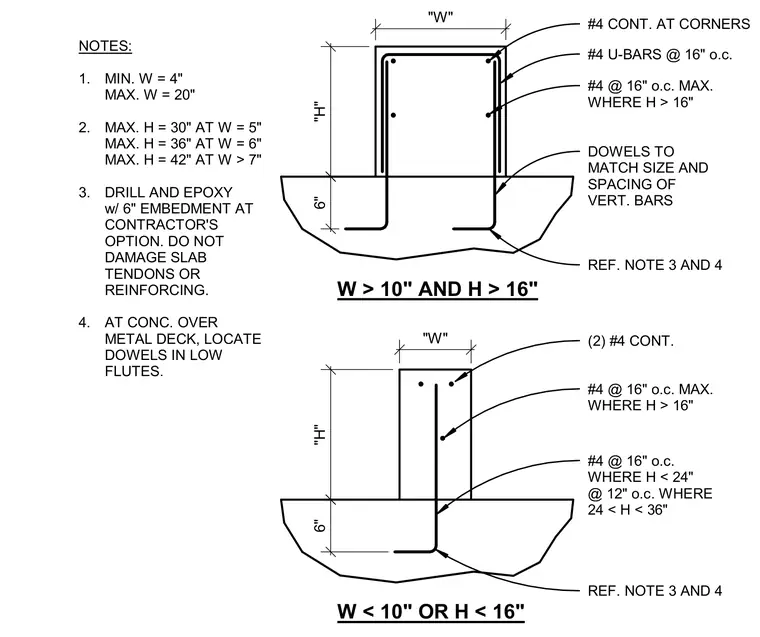

Concrete curb reinforcement configurations are provided for two conditions: curbs wider than ten inches and higher than sixteen inches, and smaller curbs. The larger curb detail incorporates continuous number four bars at corners, number four U-bars spaced at sixteen inches on center, and vertical bars spaced according to height criteria. Dowels match the size and spacing of vertical bars, anchored with a six-inch embedment into the concrete slab or concrete over metal deck, located in low flutes. The smaller curb detail features two continuous number four bars and single vertical dowels with height-dependent spacing. General notes specify dimension limits, optional drilled and epoxy-anchored dowels with precautions against damaging slab tendons, and metal deck flute alignment.
