Structural · S-WVW6X

Roof Girder and Kicker Brace Connection to Steel Column

Materials

Steel Metal (misc.)

Elements

Beams Roofs Decks Arches Bracing Insulation

Connections

Bracing Connection Bolted Connection

About this detail

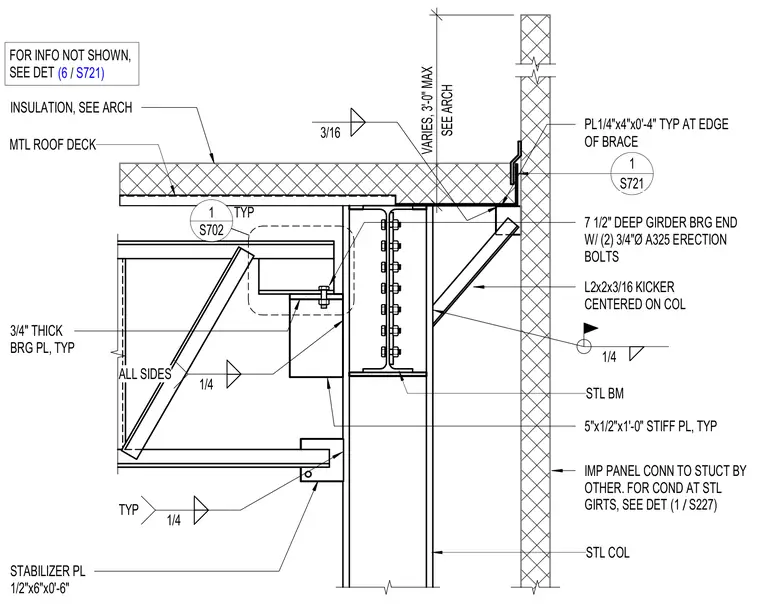

A seven-and-a-half-inch deep steel girder bears on the flange of a steel column via a three-quarter-inch thick bearing plate, secured with two three-quarter-inch diameter ASTM A325 erection bolts. Five-inch by half-inch by one-foot stiffener plates are welded to the column web. A 2x2x3/16 angle kicker brace, centered on the column, connects back to the structural assembly with quarter-inch fillet welds on all sides. A stabilizer plate measuring half-inch by six inches by six inches ties into the lower assembly. An insulated metal roof deck bears above, adjacent to an insulated metal panel wall construction.
