Structural · S-WVSQH

Beam to Shallower Beam Framed Connection

Materials

Glass / Glazing

Elements

Beams Connections / Plates

Connections

Bolted Connection

About this detail

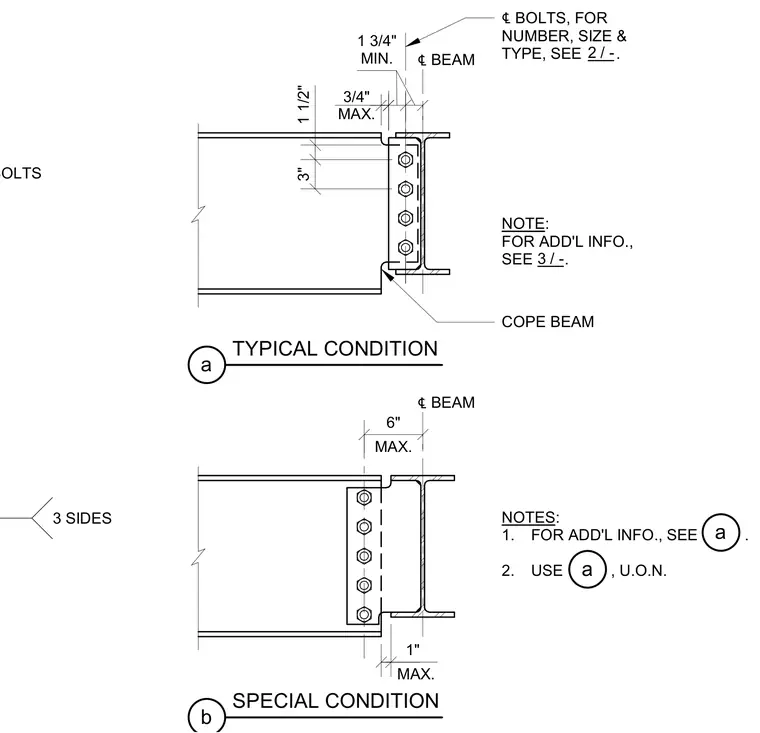

The supported steel beam frames into the web of a supporting shallower steel beam with a coped top flange for clearance. A bolted connection using A325SC slip-critical bolts secures the beam web to the supporting member. The typical condition incorporates specific edge distances and a maximum three-quarter-inch cope clearance, while the special condition allows alternative offset dimensions. Bolt number, size, and type are sized per structural drawings.
