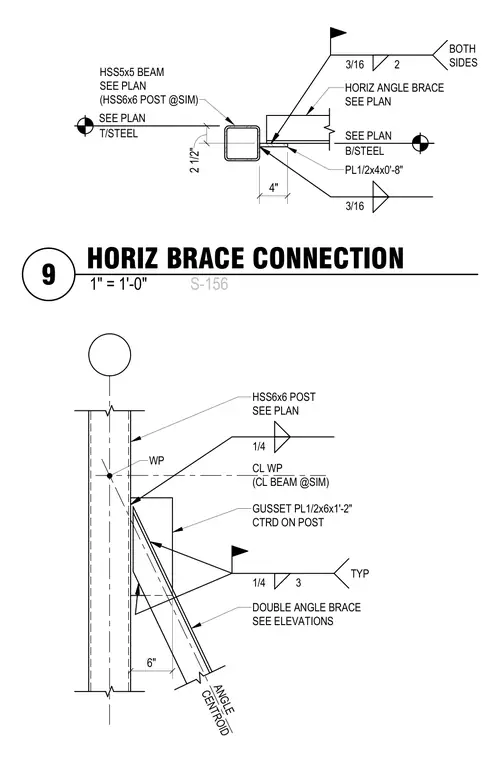

A horizontal angle brace connects to an HSS five-by-five beam and HSS six-by-six post using a half-inch by four-inch by zero-foot-eight-inch plate welded with three-sixteenth-inch fillet welds on both sides. A diagonal double-angle brace connects to the HSS six-by-six post using a half-inch by six-inch by one-foot-two-inch gusset plate centered on the post and welded with quarter-inch fillet welds. The work point aligns with the center line of the beam as detailed on the plan and elevations.
2 1/2" 4" B/STEEL SEE PLAN PL1/2x4x0'-8" HORIZ ANGLE BRACE SEE PLAN HSS5x5 BEAM SEE PLAN (HSS6x6 POST @SIM) T/STEEL SEE PLAN 3/16 3/16 2 BOTH SIDES WP CL WP (CL BEAM @SIM) GUSSET PL1/2x6x1'-2" CTRD ON POST DOUBLE ANGLE BRACE SEE ELEVATIONS ANGLE CENTROID 6" 1/4 3 TYP 1/4 HSS6x6 POST SEE PLAN 1" = 1'-0" S-156 9 HORIZ BRACE CONNECTION
