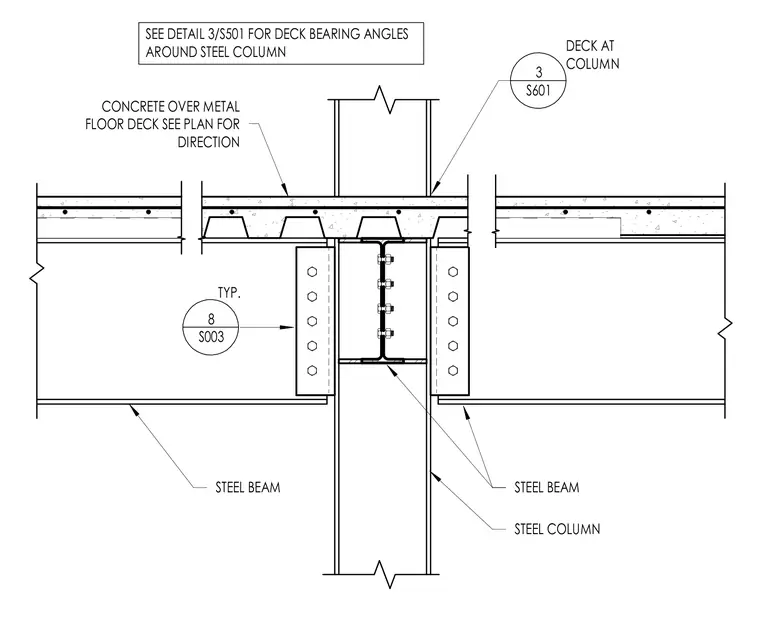

Steel beams frame into a steel column using bolted shear tab connections on both sides. A concrete slab over metal floor deck bears across the top flange of the steel beam and around the column. Deck bearing angles are provided around the steel column per plan specifications.
CONCRETE OVER METAL FLOOR DECK SEE PLAN FOR DIRECTION 8 S003 TYP. 3 S601 DECK AT COLUMN SEE DETAIL 3/S501 FOR DECK BEARING ANGLES AROUND STEEL COLUMN STEEL BEAM STEEL BEAM STEEL COLUMN
