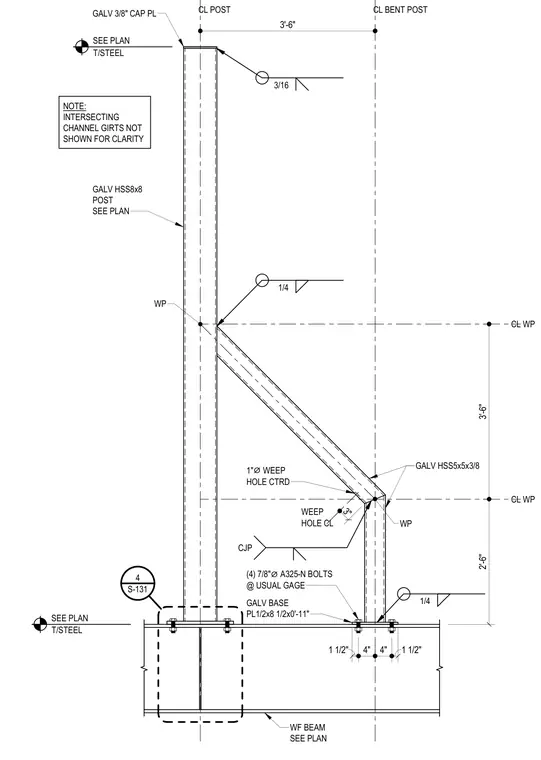

A galvanized hollow structural section vertical post connects to a wide-flange beam sized per plan with a galvanized base plate and four seven-eighths-inch diameter A325-N bolts at usual gauge. A diagonal bent formed from a galvanized hollow structural section frames into the main post and base connection, with fillet welds specified at three-sixteenths and one-quarter inch alongside a complete joint penetration weld. A galvanized three-eighths-inch thick cap plate seals the top of the post, and a one-inch diameter weep hole is centered near the base of the bent. Intersecting channel girts are omitted for clarity.
CL POST 3'-6" 2'-6" 3'-6" CL BENT POST CL WP CL WP 1 1/2" 4" 4" 1 1/2" 3" 3/16 1/4 WP GALV HSS8x8 POST SEE PLAN GALV 3/8" CAP PL T/STEEL SEE PLAN NOTE: INTERSECTING CHANNEL GIRTS NOT SHOWN FOR CLARITY T/STEEL SEE PLAN GALV HSS5x5x3/8 1" ⌀ WEEP HOLE CTRD (4) 7/8" ⌀ A325-N BOLTS @ USUAL GAGE GALV BASE PL1/2x8 1/2x0'-11" WF BEAM SEE PLAN WP WEEP HOLE CL 1/4 CJP S-131 4
