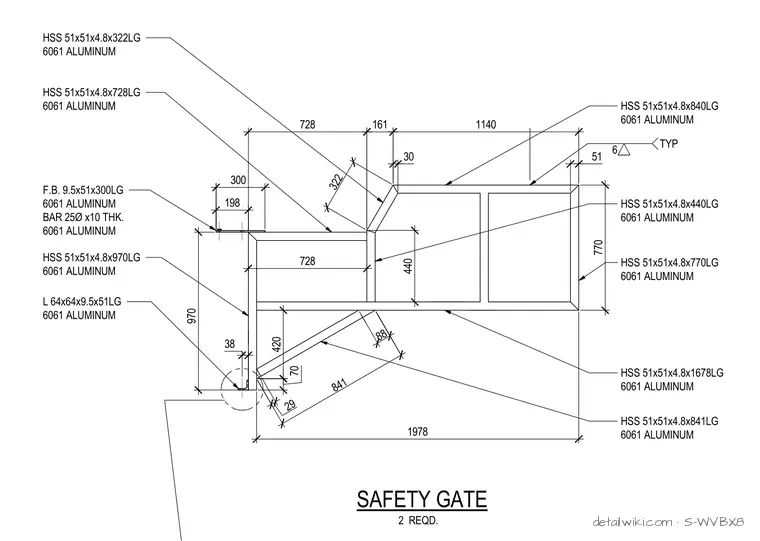

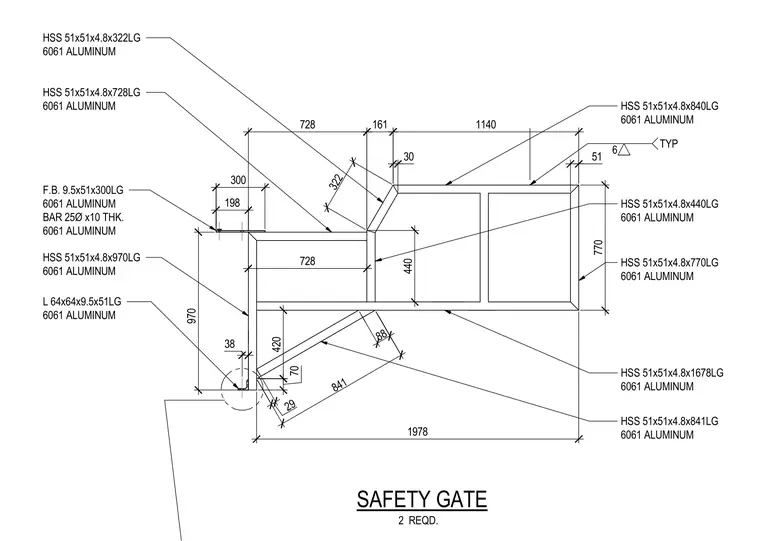

The safety gate is constructed using 6061 aluminum hollow structural section framing members measuring 51 by 51 by 4.8 millimeters. Additional components include a 64 by 64 by 9.5 millimeter aluminum angle piece and a 9.5 by 51 by 300 millimeter flat bar. A 25 millimeter diameter by 10 millimeter thick aluminum bar is also incorporated into the assembly. The frame is fully dimensioned with lengths including 970 millimeters for the vertical post and 1978 millimeters for the overall width.
728 440 420 161 1140 30 51 770 88 29 841 1978 38 70 728 322 300 198 F.B. 9.5x51x300LG 6061 ALUMINUM BAR 25Ø x10 THK. 6061 ALUMINUM 970 HSS 51x51x4.8x970LG 6061 ALUMINUM L 64x64x9.5x51LG 6061 ALUMINUM HSS 51x51x4.8x728LG 6061 ALUMINUM HSS 51x51x4.8x322LG 6061 ALUMINUM HSS 51x51x4.8x840LG 6061 ALUMINUM HSS 51x51x4.8x440LG 6061 ALUMINUM HSS 51x51x4.8x770LG 6061 ALUMINUM HSS 51x51x4.8x1678LG 6061 ALUMINUM HSS 51x51x4.8x841LG 6061 ALUMINUM TYP 6 SAFETY GATE 2 REQD.
