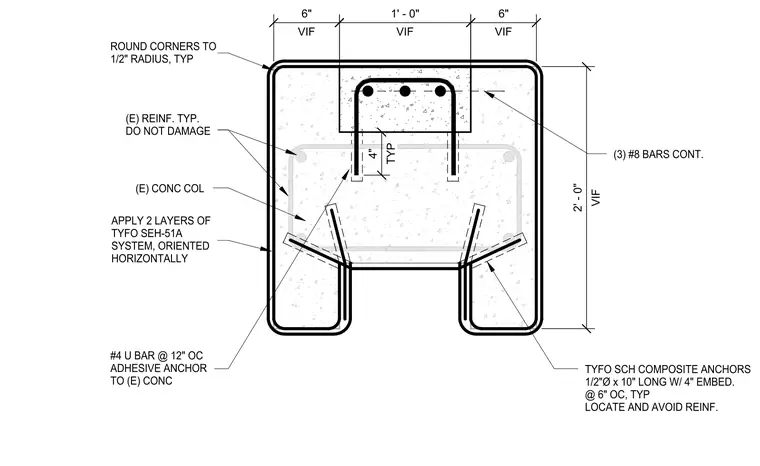

An existing concrete column is wrapped with two layers of a Tyfo SEH-51A composite system oriented horizontally over rounded corners with a one-half-inch radius. Three continuous number eight reinforcing bars are installed with number four U-bars at twelve inches on center secured by adhesive anchors into the existing concrete. Tyfo SCH composite anchors measuring one-half-inch diameter by ten inches long with four inches of embedment are spaced at six inches on center, positioned to avoid existing reinforcement. Care must be taken to avoid damaging the existing reinforcing steel during installation.
TYP 4" VIF 6" VIF 1' - 0" VIF 6" VIF 2' - 0" ROUND CORNERS TO 1/2" RADIUS, TYP (E) REINF. TYP. DO NOT DAMAGE APPLY 2 LAYERS OF TYFO SEH-51A SYSTEM, ORIENTED HORIZONTALLY (3) #8 BARS CONT. (E) CONC COL #4 U BAR @ 12" OC ADHESIVE ANCHOR TO (E) CONC TYFO SCH COMPOSITE ANCHORS 1/2"Ø x 10" LONG W/ 4" EMBED. @ 6" OC, TYP LOCATE AND AVOID REINF.
