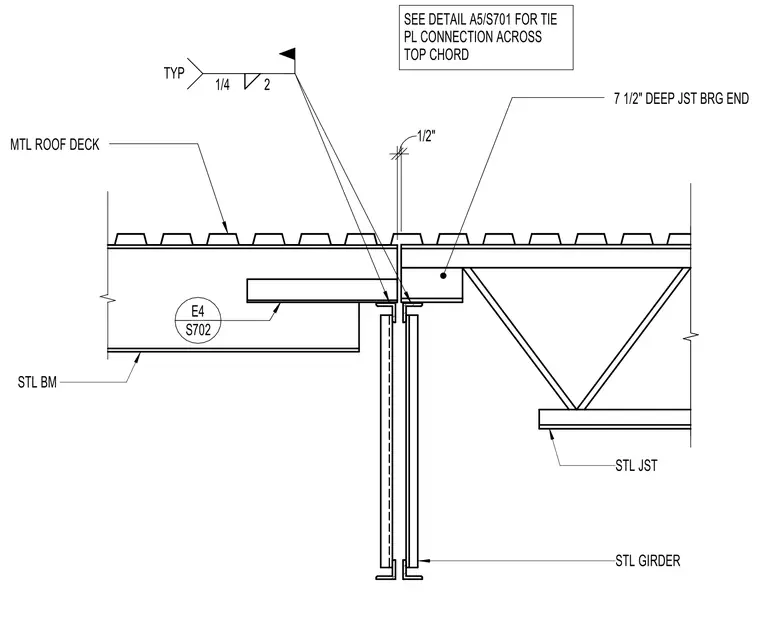

A seven and a half inch deep open web steel joist bears onto a structural steel beam and steel girder framing system. A metal roof deck spans across the top chords with a half inch clearance gap between adjacent framing sections. Field welds with a quarter inch fillet size are specified typically at the bearing interface. A tie plate connection across the top chord is referenced to detail A5 on sheet S701.
7 1/2" DEEP JST BRG END S702 E4 STL BM STL GIRDER 1/2" STL JST 1/4 2 TYP MTL ROOF DECK SEE DETAIL A5/S701 FOR TIE PL CONNECTION ACROSS TOP CHORD
