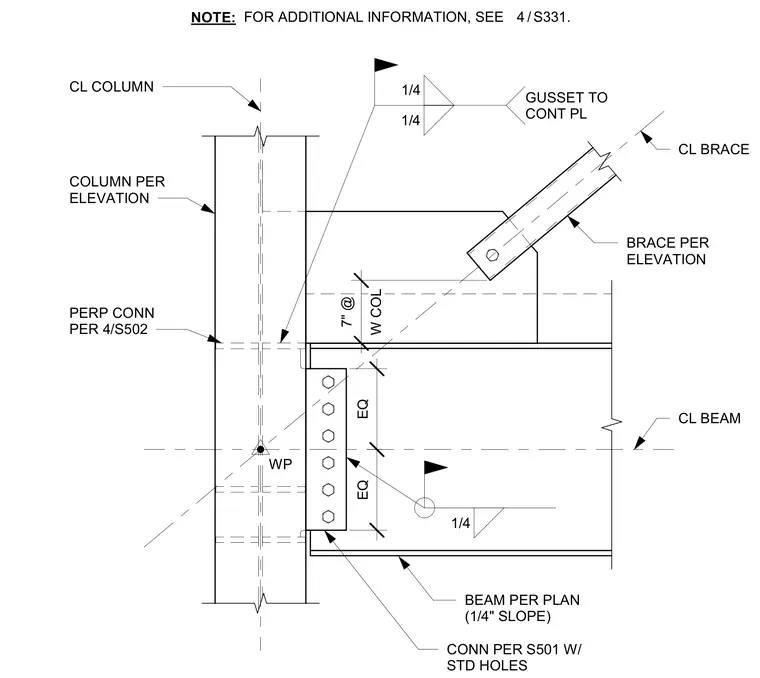

A braced frame connection at a wide-flange column features a gusset plate welded with quarter-inch fillet welds to a continuous plate and the column flange. The diagonal brace member aligns with a work point intersecting the beam and column centerlines, with the brace connecting to the gusset plate. A framing beam intersects the column with a bolted connection utilizing standard holes, detailed per sheet S501. Fillet welds of quarter-inch size secure the gusset plate assembly. Additional perpendicular connections are specified per sheet 4/S502.
BEAM PER PLAN (1/4" SLOPE) COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION WP CL BEAM CL COLUMN CONN PER S501 W/ STD HOLES 1/4 1/4 GUSSET TO CONT PL PERP CONN PER 4/S502 EQ EQ W COL 7" @ NOTE: FOR ADDITIONAL INFORMATION, SEE . / 4 S331 1/4
