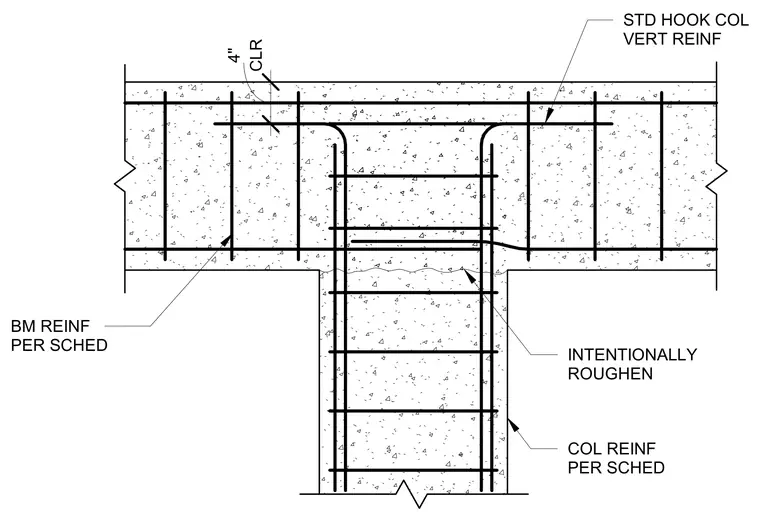

Concrete beam and column connection detailing scheduled beam reinforcement intersecting with vertical column reinforcement and horizontal ties. Column vertical reinforcement terminates with standard hooks extending into the beam-column joint. Four-inch clear dimensions govern spacing. Construction joints require intentional roughening between pours.
INTENTIONALLY ROUGHEN BM REINF PER SCHED COL REINF PER SCHED STD HOOK COL VERT REINF CLR 4"
