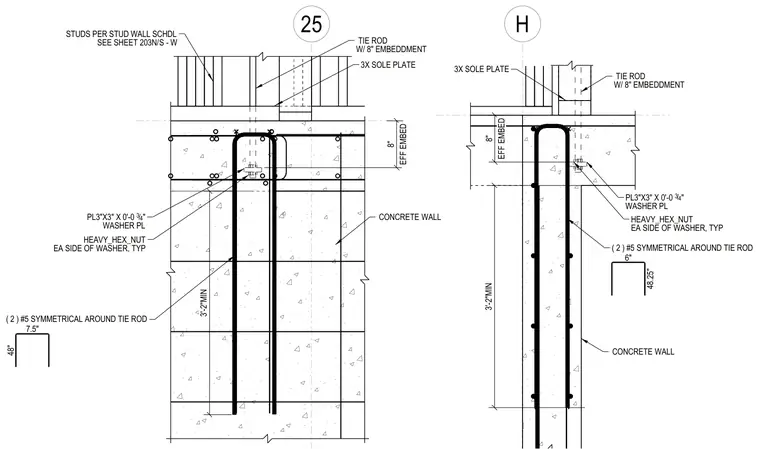

A threaded tie rod with an eight-inch effective embedment anchors into a cast-in-place concrete wall. The tie rod secures a three-times timber sole plate at the top of the wall assembly. Two number five reinforcing bars are placed symmetrically around the tie rod within the wall. A three-inch by three-inch by three-quarter-inch washer plate and heavy hex nuts secure each side of the washer plate typically. Wood framing studs sit above the sole plate, sized per the stud wall schedule.
H 25 EFF EMBED EFF EMBED CONCRETE WALL ( 2 ) #5 SYMMETRICAL AROUND TIE ROD 48.25" 6" TIE ROD W/ 8" EMBEDDMENT PL3"X3" X 0'-0 3 4 / " WASHER PL HEAVY_HEX_NUT EA SIDE OF WASHER, TYP 8" 3'-2"MIN 3X SOLE PLATE TIE ROD W/ 8" EMBEDDMENT CONCRETE WALL ( 2 ) #5 SYMMETRICAL AROUND TIE ROD 48" 7.5" PL3"X3" X 0'-0 3 4 / " WASHER PL HEAVY_HEX_NUT EA SIDE OF WASHER, TYP 3X SOLE PLATE SEE SHEET 203N/S - W STUDS PER STUD WALL SCHDL 8" 3'-2"MIN
