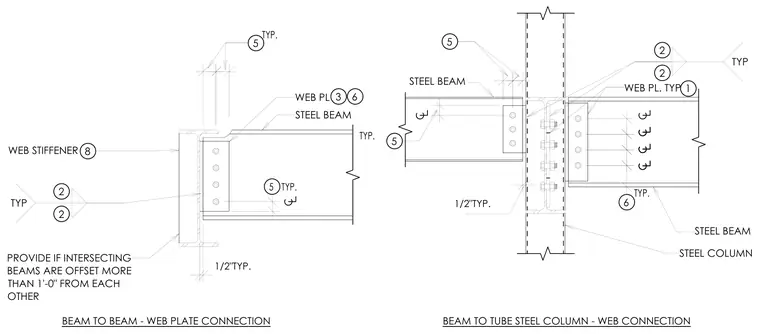

A steel beam connects to a hollow structural section steel column web using a web plate and multiple bolts. Web stiffeners are welded to the column as required. A parallel detail provides an offset beam-to-beam web plate connection used when intersecting framing members are offset by more than one foot.
BEAM TO BEAM - WEB PLATE CONNECTION 1/2"TYP. 5 TYP. WEB STIFFENER 8 5 TYP. WEB PL 3 6 STEEL BEAM 5 STEEL BEAM 2 2 1/2"TYP. STEEL COLUMN STEEL BEAM 6 TYP. WEB PL. TYP 1 5 TYP. BEAM TO TUBE STEEL COLUMN - WEB CONNECTION PROVIDE IF INTERSECTING BEAMS ARE OFFSET MORE THAN 1'-0" FROM EACH OTHER TYP 2 2 TYP
