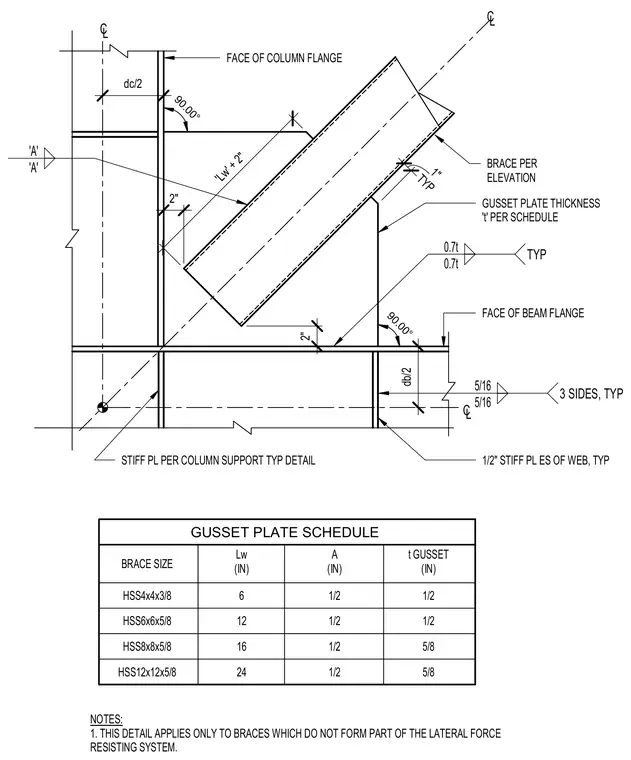

A gusset plate of specified thickness is welded between the face of the column flange and the face of the beam flange at a hollow structural section brace intersection. The brace member connects to the gusset plate with fillet welds sized per the accompanying gusset plate schedule based on the brace size. One-half-inch stiffener plates are welded to the web of the beam and column with five-sixteenth-inch fillet welds on three sides typical. A note restricts application strictly to braces which do not form part of the lateral force resisting system.
2" 2" TYP 1" 'Lw' + 2" dc/2 db/2 0.7t 0.7t TYP 'A' 'A' BRACE PER ELEVATION C L 90.00° GUSSET PLATE THICKNESS 't' PER SCHEDULE FACE OF COLUMN FLANGE FACE OF BEAM FLANGE GUSSET PLATE SCHEDULE BRACE SIZE Lw (IN) A (IN) t GUSSET (IN) HSS6x6x5/8 12 1/2 1/2 HSS8x8x5/8 16 1/2 5/8 HSS12x12x5/8 24 1/2 5/8 NOTES: 1. THIS DETAIL APPLIES ONLY TO BRACES WHICH DO NOT FORM PART OF THE LATERAL FORCE RESISTING SYSTEM. 90.00° C L C L HSS4x4x3/8 6 1/2 1/2 1/2" STIFF PL ES OF WEB, TYP 5/16 5/16 3 SIDES, TYP STIFF PL PER COLUMN SUPPORT TYP DETAIL
