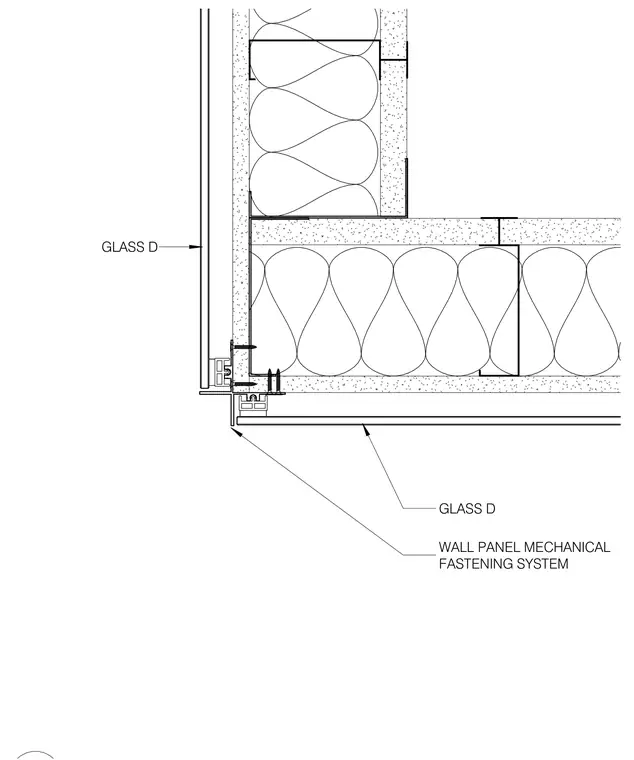

Backpainted glass wall panels are mounted at an outside corner using a mechanical fastening system secured to cold-formed metal framing and gypsum board sheathing. The corner trim and fastening extrusions coordinate with the panel edges to create a clean reveal. Insulation fills the stud cavity behind the interior wall lining.
