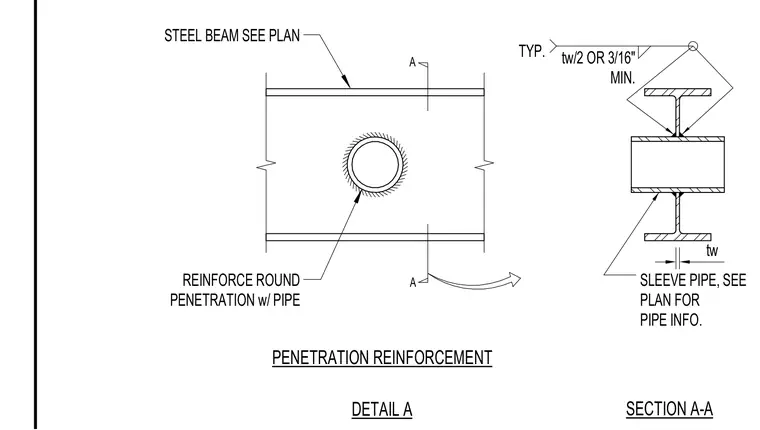

A structural steel beam web is penetrated by a round pipe sleeve sized per plan. The penetration is reinforced with a sleeve pipe welded to the beam web with a fillet weld size equal to half the web thickness (tw/2) or three-sixteenths of an inch minimum.
tw SECTION A-A DETAIL A A A STEEL BEAM SEE PLAN REINFORCE ROUND PENETRATION w/ PIPE TYP. SLEEVE PIPE, SEE PLAN FOR PIPE INFO. tw/2 OR 3/16" MIN. PENETRATION REINFORCEMENT
