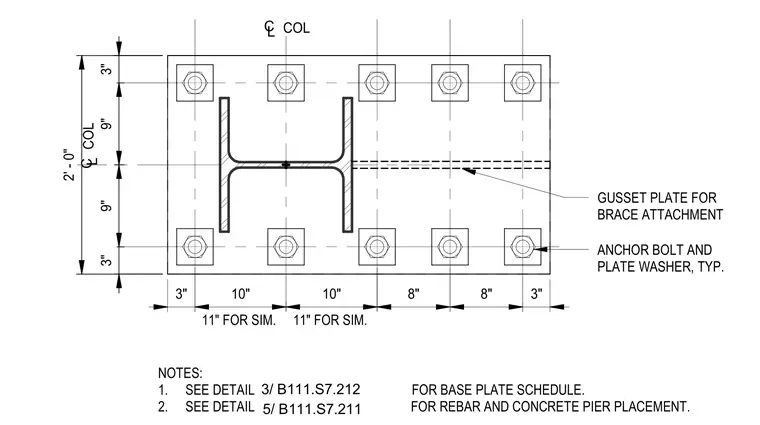

This plan view details the layout of a steel column base plate, featuring a ten-bolt anchorage pattern with plate washers at each location. The column is centered on the plate, which includes a gusset plate for brace attachment extending from the column flange. Anchor bolt spacing is dimensioned at three inches, nine inches, ten inches, eight inches, and three inches to define the bolt pattern relative to the column centerline. The assembly is referenced to a base plate schedule and specific rebar and concrete pier placement details.
