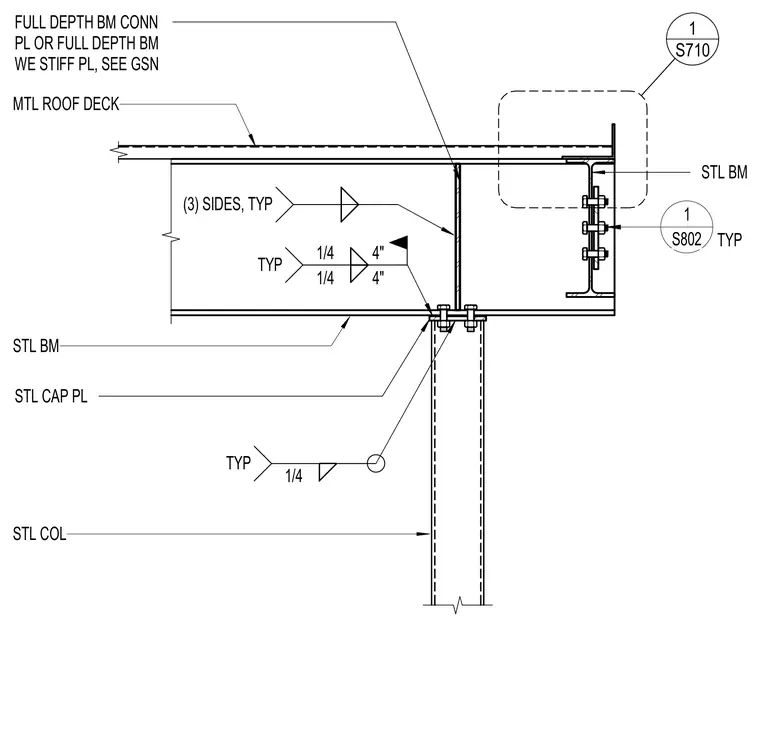

A steel beam frames into a steel column topped with a steel cap plate, secured using a full depth beam connection plate or full depth beam web stiffener plate. A metal roof deck bears directly on top of the steel framing members. Fillet welds of one-quarter inch size are specified typically on three sides of the connection plate and at the cap plate interface.
FULL DEPTH BM CONN PL OR FULL DEPTH BM WE STIFF PL, SEE GSN STL BM STL CAP PL STL BM STL COL MTL ROOF DECK 1/4 TYP (3) SIDES, TYP 1/4 1/4 4" 4" TYP 1 S802 S710 1 TYP
