Structural · S-WSH83

Typical Slab Edge Condition and Framing at Column

Materials

Concrete Reinforced Concrete Steel

Elements

Columns Facades / Cladding Railings / Guards Floors / Slabs Decks Anchors / Embeds Connections / Plates Reinforcing

Connections

Welded Connection Rebar Splice / Development Deck Attachment

About this detail

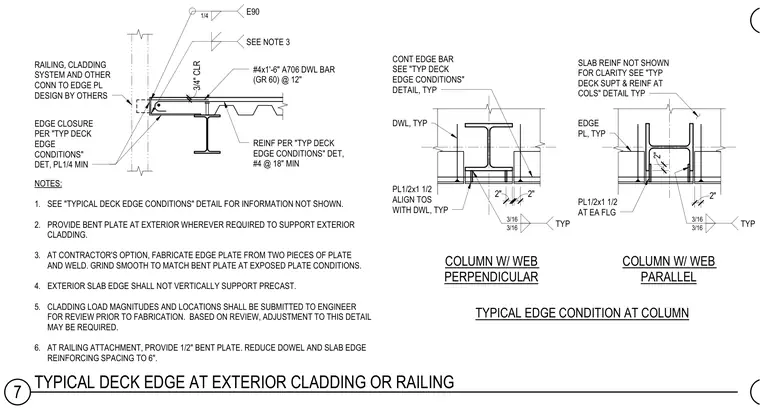

Typical slab edge condition at exterior columns, incorporating edge plates and dowel reinforcing for cladding and railing attachments. The assembly features an edge plate welded with three-sixteenths inch fillet welds to structural steel elements, alongside number four reinforcing dowel bars spaced at twelve inches on center. Additional views show column conditions with the web oriented both perpendicularly and in parallel to the slab edge. Notes permit the contractor to fabricate the edge plate from two pieces of plate provided the weld is ground smooth at exposed conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership

Similar details
