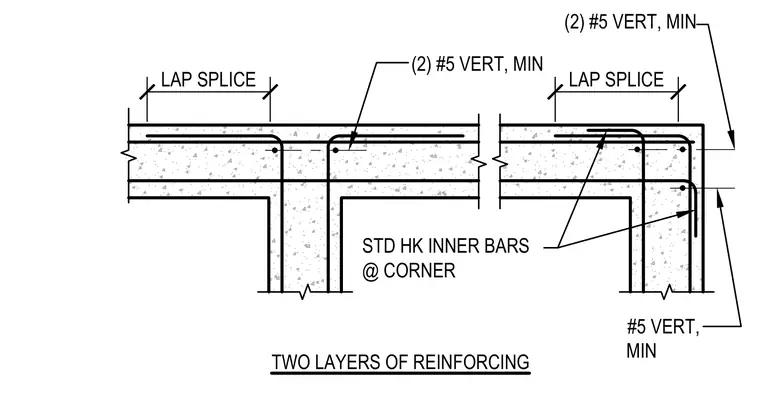

Concrete wall and footing intersections feature two layers of reinforcing. Vertical reinforcement consists of a minimum of two number five bars anchored with standard hooks at the inside corners. Lap splices are provided along the horizontal runs as indicated. Additional number five vertical minimum reinforcing is detailed at the corner junctions.
LAP SPLICE LAP SPLICE TWO LAYERS OF REINFORCING (2) #5 VERT, MIN (2) #5 VERT, MIN STD HK INNER BARS @ CORNER #5 VERT, MIN
