Structural · S-WSG5R

Typical Roof Screen Wall Brace and Post

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Walls Roofs Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Bolted Connection Deck Attachment

About this detail

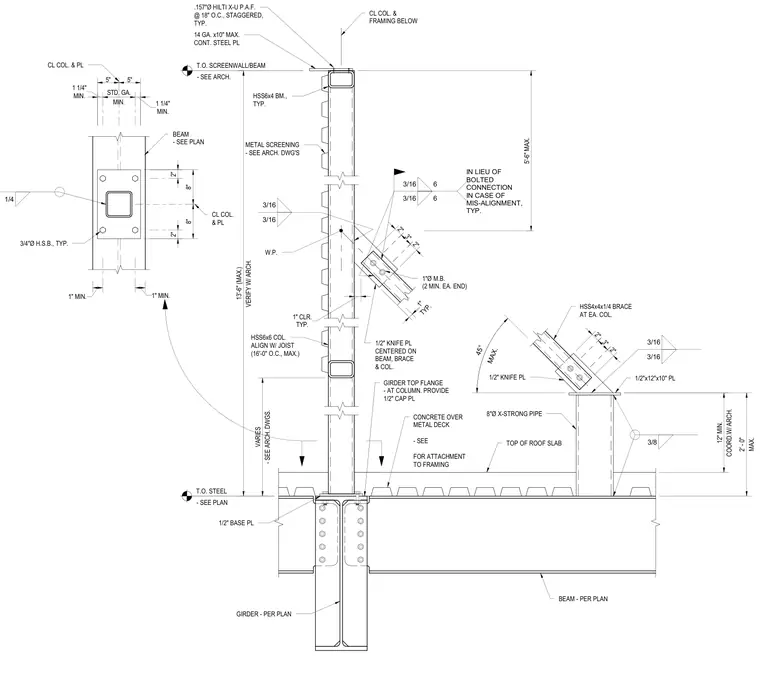

A structural steel roof screen wall assembly is anchored to the main framing. A hollow structural section column (HSS6x6) extends upward from a one-half-inch base plate welded to the top flange of a structural steel girder. A diagonal hollow structural section brace (HSS4x4x1/4) connects to the main column using a one-half-inch knife plate and one-inch diameter machine bolts, with a similar knife plate welded to an eight-inch extra-strong pipe prop supported on the roof slab. Metal screening and framing components attach to the top of the assembly using powder-actuated fasteners and continuous steel plates. Fillet welds of various sizes secure the connection plates to the structural members as indicated.
