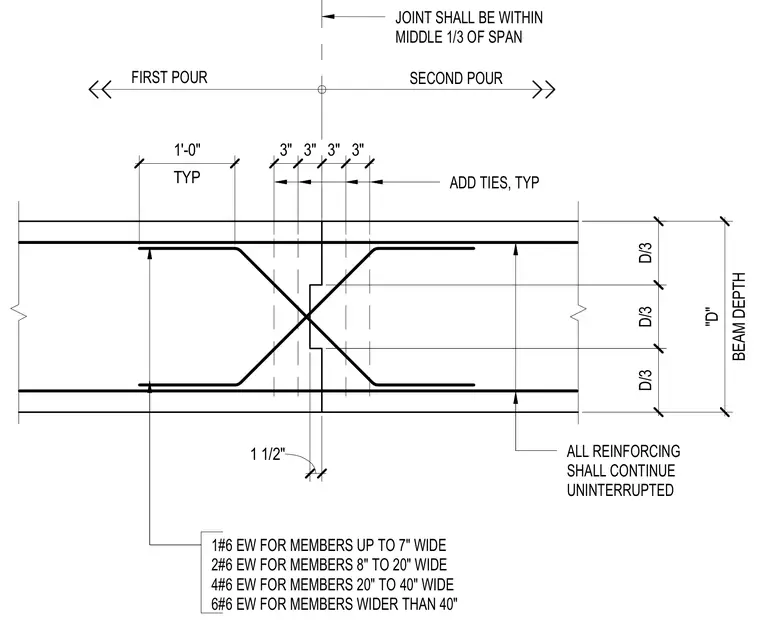

The construction joint between first and second concrete pours is located within the middle third of the span. All main reinforcing bars continue uninterrupted across the joint interface with interlocking shear key details. Additional ties are spaced at three-inch increments near the joint. Longitudinal reinforcement sizing varies by member width, utilizing one number six bar each way for members up to seven inches wide, two number six bars each way for members eight to twenty inches wide, four number six bars each way for members twenty to forty inches wide, and six number six bars each way for members wider than forty inches.
ADD TIES, TYP SECOND POUR FIRST POUR JOINT SHALL BE WITHIN MIDDLE 1/3 OF SPAN ALL REINFORCING SHALL CONTINUE UNINTERRUPTED 1#6 EW FOR MEMBERS UP TO 7" WIDE 2#6 EW FOR MEMBERS 8" TO 20" WIDE 4#6 EW FOR MEMBERS 20" TO 40" WIDE 6#6 EW FOR MEMBERS WIDER THAN 40" TYP 1'-0" D/3 D/3 D/3 BEAM DEPTH "D" 1 1/2" 3" 3" 3" 3"
