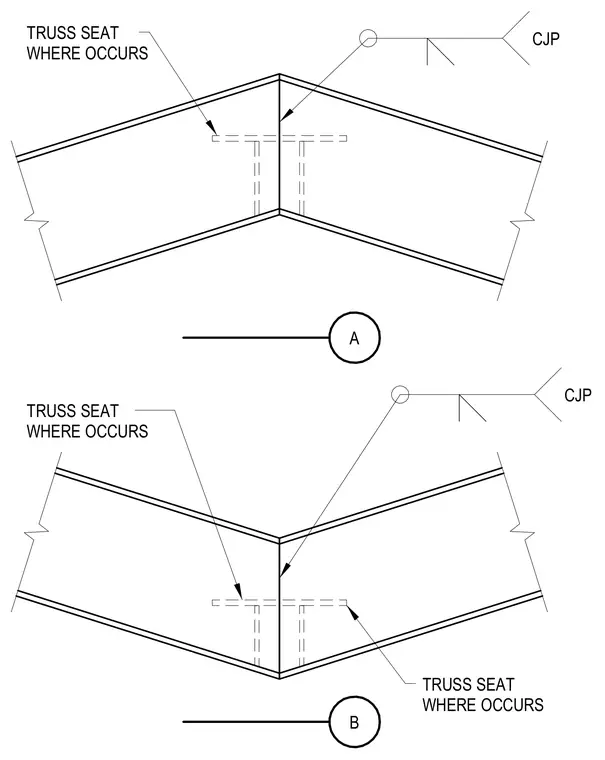

Two sloped ledger members meet at a ridge or slope break and join with a complete joint penetration weld at the joint interface. A truss seat is provided where indicated with dashed hidden lines inside the assembly. The ridge connection is fully welded using a complete joint penetration weld specified by the callout.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
