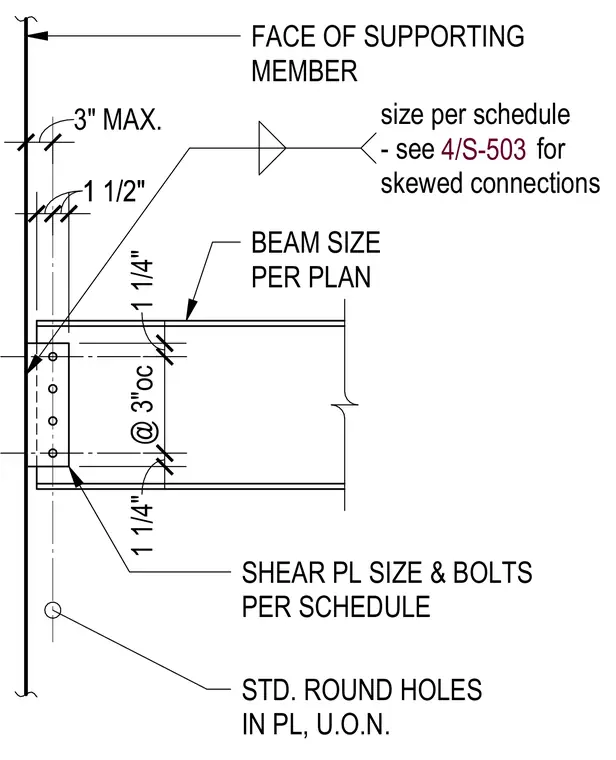

A structural steel framing detail showing a beam connected to the face of a supporting member via a shear plate. The beam size and shear plate dimensions, along with bolt sizes, are sized per schedule. Standard round holes are punched in the plate unless noted otherwise. A maximum three-inch spacing and one and one-half inch edge distance apply to the fastener layout, with one and one-quarter inch vertical spacing on center. Skewed connections reference detail 4/S-503.
BEAM SIZE PER PLAN SHEAR PL SIZE & BOLTS PER SCHEDULE size per schedule - see for skewed connections FACE OF SUPPORTING MEMBER STD. ROUND HOLES IN PL, U.O.N. 1 1/4" @ 3"oc 1 1/4" 3" MAX. 1 1/2" 1 1/2" 4/S-503
