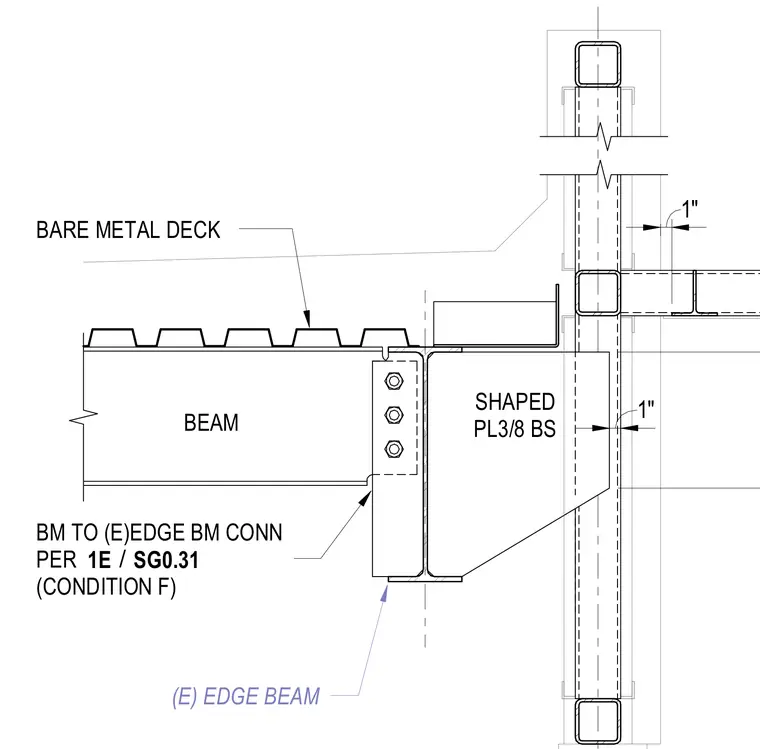

A structural beam with a bare metal deck connects to an existing edge beam using a shaped 3/8-inch plate on the bottom side, detailed per condition F on sheet SG0.31. The framing ties into a vertical stud wall assembly carrying horizontal framing members above and below the intersection.
BEAM BM TO (E)EDGE BM CONN PER (CONDITION F) SHAPED PL3/8 BS BARE METAL DECK 1" / 1E SG0.31 (E) EDGE BEAM 1"
