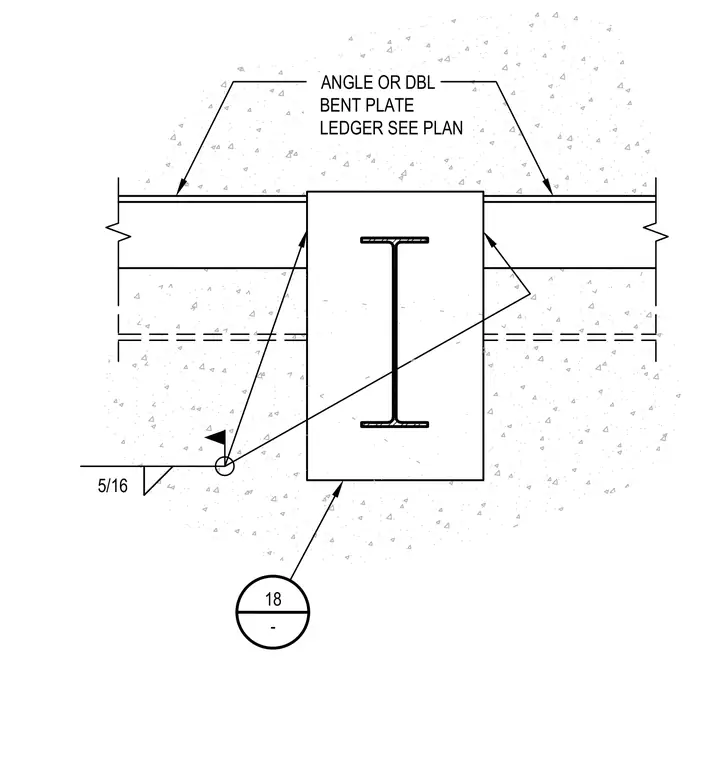

An angle or double bent plate ledger sized per plan connects across structural steel elements embedded in concrete. A five-sixteenth-inch fillet weld secures the assembly components. The detail provides the standard configuration for splicing structural ledgers.
